Knipex High Leverage Diagonal Cutters VDE 1000V

Knipex 74 06 180 SB High Leverage Diagonal Cutters VDE 1000V

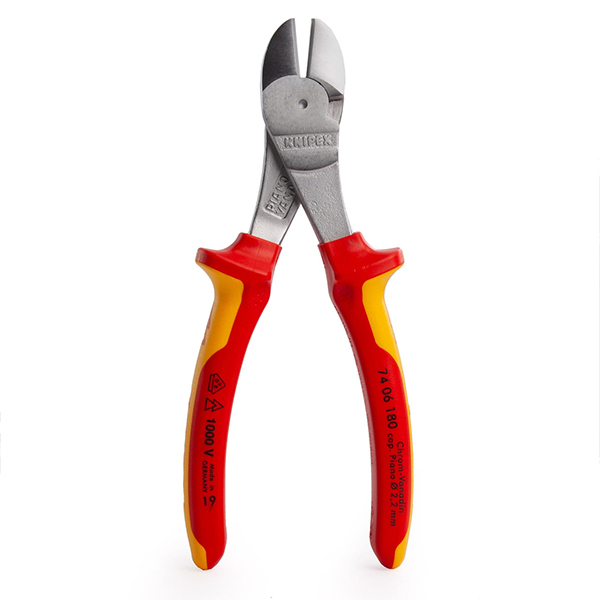

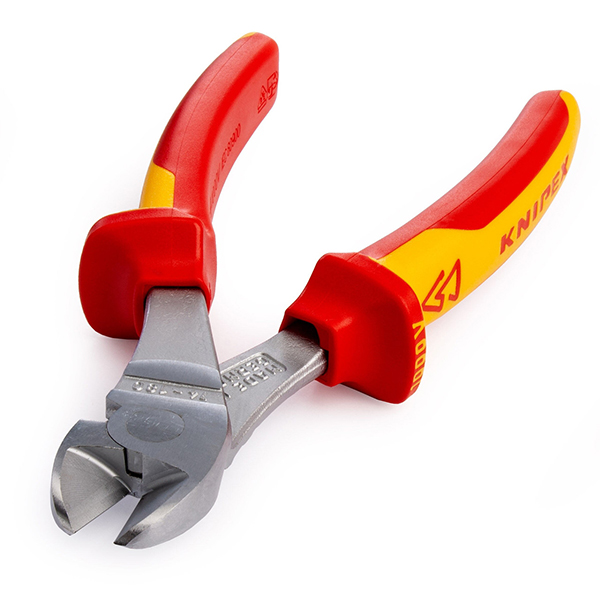

The Knipex 7406180SB High Leverage Diagonal Cutters have a chrome plated head and VDE-tested, insulated handles with multi-component grips. Due to the design, 20% less effort is required compared to conventional diagonal cutters of the same length (180mm). With integrated forged joint axle.

Features:

• With integrated forged axle for heaviest duty

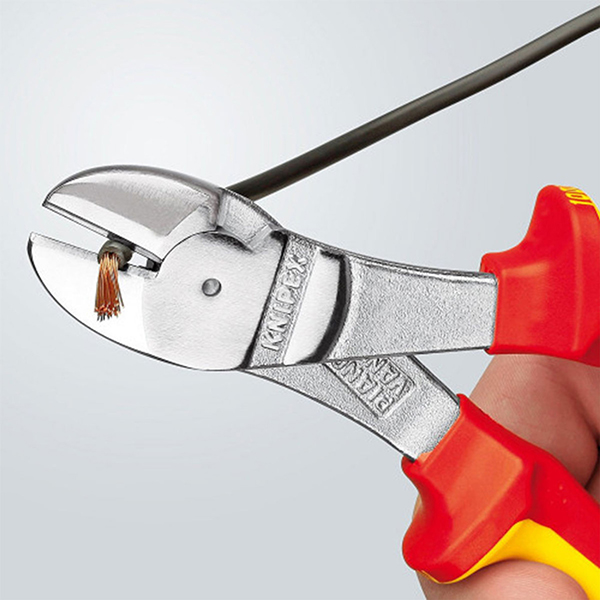

• Suitable for all types of wire including piano wire
• High cutting performance with minimum effort due to optimum co-ordination of the cutting edge angle and transmission ratio
• Precision cutting edges additionally induction-hardened, cutting edge hardness approx. 64 HRC
• Chrome vanadium heavy-duty steel, forged, multi stage oil-hardened

Specification:

• Part Number: 74 06 180
• Pliers: chrome plated
• Handles: insulated with multi-component grips, VDE-tested
• Head:
• Insulation standard: IEC 60900 DIN EN 60900
• Cutting capacities medium hard wire (diameter): 3.8mm
• Cutting capacities hard wire (diameter): 2.7mm
• Cutting capacities piano wire (diameter): 2.2mm
• Length: 180 mm
• Net weight: 0.280kg
